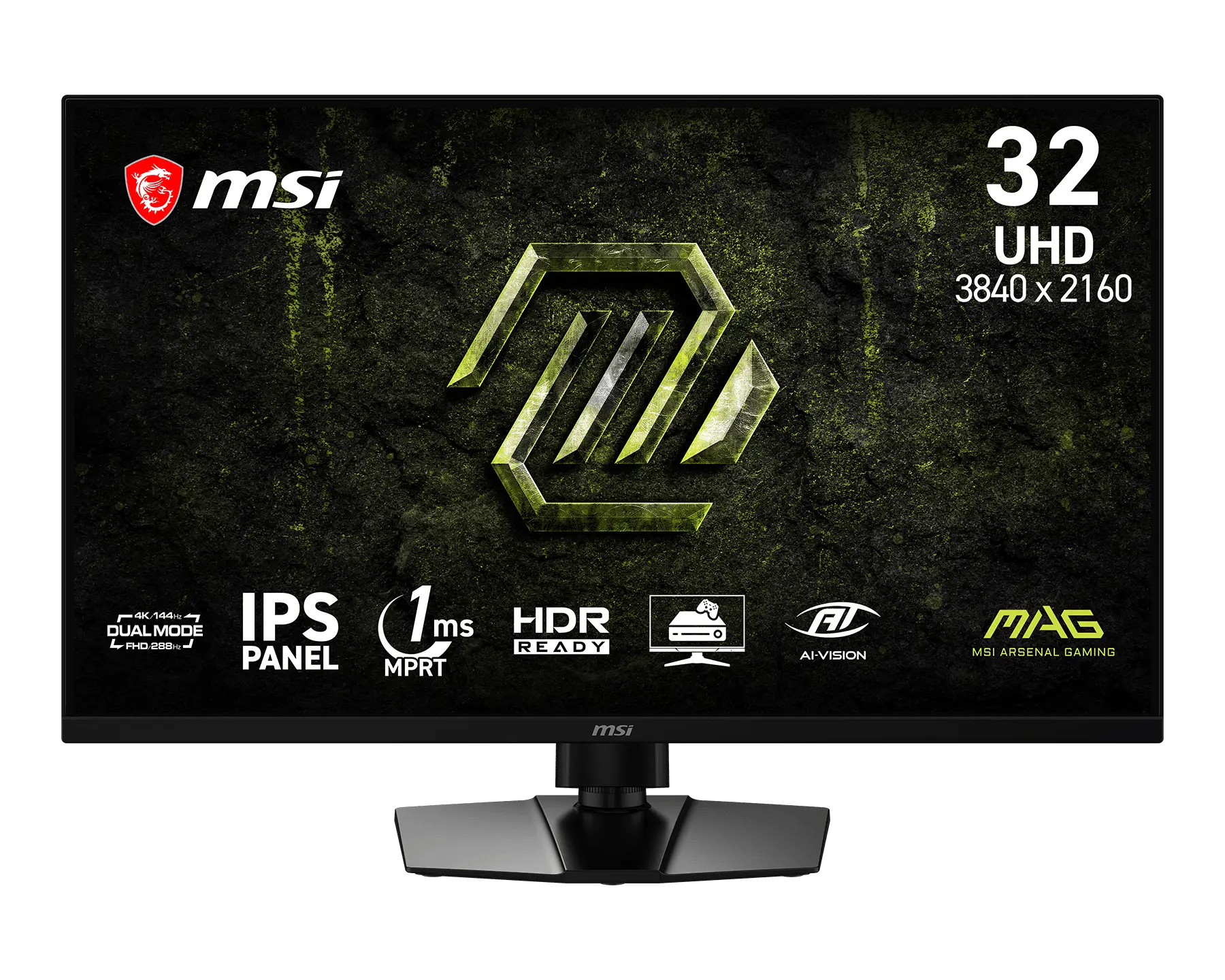

MSI MAG 321UPD E1 Gaming monitor 31,5" IPS/­3840x2160(UHD)/­144Hz (288Hz - FHD)/­1ms/­2xHDMI/­DP/­výšk.nast./­Pivot

MSI MAG 321UPD E1 Gaming monitor 31,5" IPS/3840x2160(UHD)/144Hz (288Hz - FHD)/1ms/2xHDMI/DP/výšk.nast./Pivot

Website Name MAG 321UPD E14
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 31.5" (80.01 cm)
Active Display Area (mm) 697.3056 (H) x 392.2344 (V)
Curvature Flat
Panel Type IPS
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.18159(H)x0.18159(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology AMD FreeSync™ Premium
Dynamic Refresh Rate Activated Range UHD : 48~144Hz, FHD : 48~288Hz
HDR (High dynamic range) HDR Ready
SDR Brightness (nits) 300
HDR Brightness (Peak nits) NA
Contrast Ratio 1500:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency UHD:108~324 KHz(H) / 48~144 Hz(V), FHD:54~324 KHz(H) / 48~288 Hz(V)
Refresh Rate UHD:144Hz, FHD:288Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 5.578ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 115%/87%
NTSC (CIE1931 area percentage/overlap) 94%/85%
sRGB (CIE1976 area percentage/overlap) 132%/95%
sRGB (CIE1931 area percentage/overlap) 135%/95%
Adobe RGB (CIE1976 area percentage/overlap) 114%/91%
Adobe RGB (CIE1931 area percentage/overlap) 99%/86%
DCI-P3 (CIE1976 area percentage/overlap) 105%/94%
DCI-P3 (CIE1931 area percentage/overlap) 99%/92%
Rec.709 (CIE1976 area percentage/overlap) 132%/95%
Rec.709 (CIE1931 area percentage/overlap) 135%/95%
Rec.2020 (CIE1976 area percentage/overlap) 75.5%/75%
Rec.2020 (CIE1931 area percentage/overlap) 70%/70%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP UHD:3840 x2160 (Up to 144Hz), FHD:1920 x 1080 (Up to 288Hz)
Note_HDMI UHD:3840 x2160 (Up to 144Hz), FHD:1920 x 1080 (Up to 288Hz)
Note_DVI N/A
VESA DisplayHDR NA
VESA ClearMR NA
Delta E NA
I/O Ports
HDMI 2
HDMI version 2.1 (FRL 12G)
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Micro USB Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 32
Annual Energy Consumption (KWh) 47
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 100 mm
Adjustment (Pivot) -12° ~ 12°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method Screw locking
Stand Type 4-way Ergonomic (Tilt + Lift + Swivel + Pivot)
Stand with Integrated Mini PC Mount NA
KVM Version NA
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display NA
AI Gaming AI Vision
MSI OLED Care NA
Scaler FW Update Update by Firmware Update Utility (DP)
Carton
Carton Item (SG14) SG14-M1S299A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 20
Q'ty/20cy (by air) pcs 200
Q'ty/40cy (by air) pcs 420
Dimension (L)(by air) mm 1219
Dimension (W)(by air) mm 1016
Dimension (H)(by air) mm 1459
Net Weight (by air) kg 240
Gross Weight (by air) kg 265
pallet Q'ty (by sea) pcs 32
Q'ty/20cy (by sea) pcs 320
Q'ty/40cy (by sea) pcs 672
Dimension (L)(by sea) mm 1219
Dimension (W)(by sea) mm 1016
Dimension (H)(by sea) mm 2187
Net Weight (by sea) kg 384
Gross Weight (by sea) kg 409
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 713.94 x 261.89 x 563.85
Product Dimension with Stand (WxDxH) (inch) 28.11 x 10.31 x 22.2
Product Dimension without Stand (WxDxH) (mm) 308.65 x 261.89 x 390.79
Product Dimension without Stand (WxDxH) (inch) 12.15 x 10.31 x 15.39
Stand Dimension (WxDxH) (mm) 308.65 x 261.89 x 390.79
Stand Dimension (WxDxH) (inch) 12.15 x 10.31 x 15.39
Weight (Net kg) 8.25
Weight (Net lbs) 18.19
Weight Without Stand (kg) 5.5
Weight Without Stand (lbs) 12.13
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 94.4 x 15 x 51.4
Inside Carton Dimension (WxDxH) (inch) 37.17 x 5.91 x 20.24
Outer Carton Dimension (WxDxH) (cm) 96.4 x 17.5 x 54.4
Outer Carton Dimension (WxDxH) (inch) 37.95 x 6.89 x 21.42
Weight (Gross kg) 11.99
Weight (Gross lbs) 26.43
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 0
HDMI Cable Version N/A
DVI Cable 0
DVI Cable Version N/A
USB Type A to Micro USB Type B cable 0
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Segment Name2 MAG 321U E14
Segment Name MAG
Series Name LCD
Segment Name3 MAG 321UPD E14
Extra Info
EOL Date
Barcode Info
UCC14 10824142451530
UPC 824142451533
JAN
EAN 4711377416986
