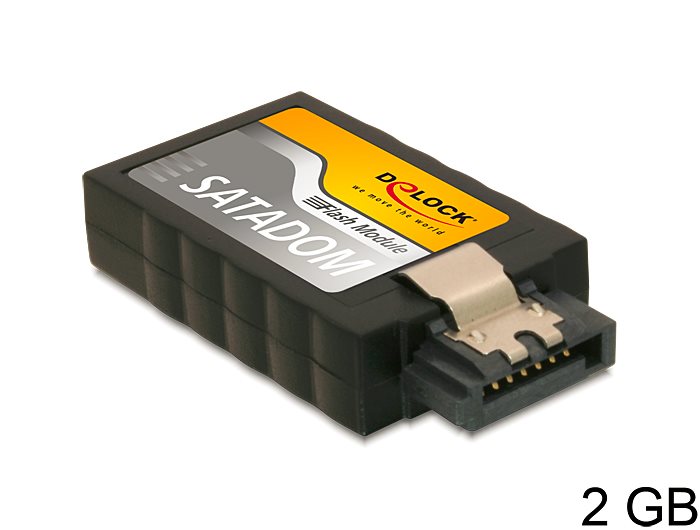

Delock SATA 3 Gb/­s Flash Module 2 GB vertical

The SATA 3 Gb/s Flash Module is due to its very small size and high shock resistance ideal for application of mobile devices like IPCs, measuring systems as well as Digital Signage etc. Additional snap in will be provided by metal clips on the SATA connectors.

Specifikace
• Capacity 2 GB
• 7 pin SATA 3 Gb/s interface
• Chip: SLC (Single Level Cell)
• Operating voltage: 5 V +/-5%
• Operating temperature: 0 °C ~ + 70 °C
• Power consumption: read: 230 mA
                                   write: 330 mA
                                   idle: 130 mA
• Transfer modes: SATA 3 Gb/s, SATA 1.5 Gb/s, PIO 0~4, MDMA 0~2, UDMA 0~6
• S.M.A.R.T. & i-S.M.A.R.T. supported
• Endurance 100.000 cycles
• Read: up to 26 MB/s; write: up to 20 MB/s
• MTBF: > 4.000.000 hrs
• Vibration: 7~2000 Hz
• Shock: 1500 G / 0.5 ms
• Dimension: 32.8 x 20.8 x 8.0 mm (LxWxH)

Systémové požadavky
• A free SATA 7 pin port
• Power supply with a free Molex power connector

Obsah balení
• 2 GB SATA Flash Modul

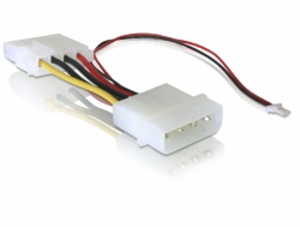

• Powerkabel

Balení
• Antistatic cover

Výrobek je dodáván s manuálem pouze v anglickém nebo německém jazyce.
