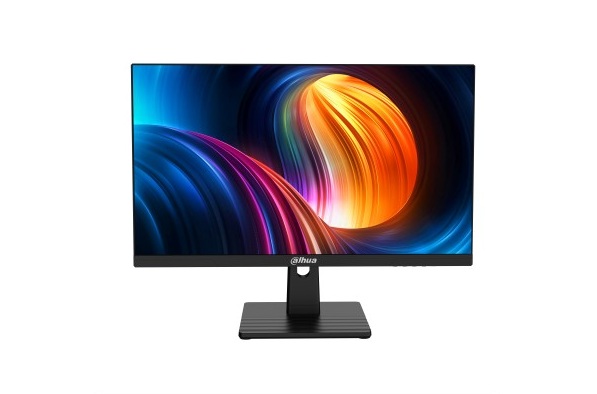

Dahua monitor LM27-B221B 27" IPS/­1920x1080/­1ms/­144Hz/­300nits/­1300:1/­DP/­HDMI/­černý

Display

Model

DHI-LM27-B221B

LCD Technology

IPS

Backlight

ELED

Screen Size

27 inch

Aspect Ratio

16:9

Viewing Size

597.888 (H) × 336.312 (V) mm

Screen-to-Body Ratio

?90%

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.3114 mm × 0.3114 mm (0.01" × 0.01")

Pixels Per Inch

81.6

Resolution

1920 (H) × 1080 (V)

Refresh Rate

144 Hz

Display Color

16.7M

Color Gamut

85% NTSC (typ.)

Brightness

300 cd/m2 (typ.)

Contrast Ratio

1,300: 1

Response Time

MPRT 1 ms

Lifespan

30,000 hrs

Surface Treatment

Haze 25%, 3H

Device Ports

Input Port

1 × DP 1.4 (1920 × 1080@144 Hz), 1 × HDMI 2.0 (1920 × 1080@144 Hz)

Output Port

1 × Audio out port

Power & Environmental Conditions

Power Supply

12 VDC, 2.5 A

Power Type

External power adapter

Power Consumption

21 W (basic), 25 W (typ.), 35 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–85% (RH), non-condensing

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH), non-condensing

General

Inclined Angle

-5° ± 2° / 20° ± 2°

Product Dimensions

614.3 mm × 366.8 mm × 57.2 mm (24.19" × 14.44" × 2.25") (W × H × D), without wall-mount bracket

Package Size

695 mm × 460 mm × 150 mm (27.36" × 18.11" × 5.91") (W × H × D)

Unilateral Splicing

U/L/R/D: 3.1 mm/3.1 mm/3.1 mm/20.9 mm

Net Weight

3.7 kg (8.16 lb)

Gross Weight

4.95 kg (10.91 lb)

Casing Color

Black

Control Mode

Five-button

Status Indicator Light

Yes

Wall Mount VESA

100 mm × 100 mm (3.94" × 3.94")

Accessory

Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc.

Optional Accessory

Wall mount
