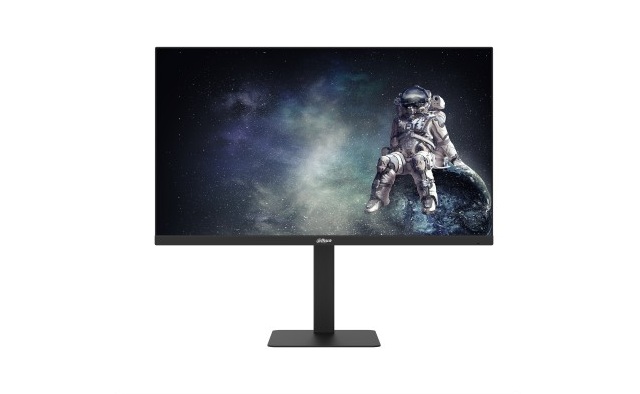

Dahua herní monitor LM25-E241A 24,5" IPS/­1920x1080/­1ms/­320Hz/­300nits/­1000:1/­DP/­HDMI/­Pivot/­černý

Display

Model

DHI-LM25-E241A

LCD Technology

IPS

Backlight

ELED

Screen Size

24.5 inch

Aspect Ratio

16:9

Viewing Size

543.744 (H) × 302.616 (V) mm

Screen-to-Body Ratio

?90%

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.2832 mm × 0.2802 mm

Pixels Per Inch

89.91

Resolution

1920 (H) × 1080 (V)

Refresh Rate

300 Hz, overclocked to 320 Hz

Display Color

16.7M

Color Gamut

85% NTSC (typ.)

Brightness

300 cd/m2 (max)

Contrast Ratio

1000:1

Response Time

MPRT 1 ms

Operation Hours

7 × 16 H

Lifespan

30,000 hrs

Surface Treatment

Haze 25%, 3H

Device Ports

Input Port

2 × DP 1.4 (1920 × 1080@320 Hz), 2 × HDMI 2.1 (1920 × 1080@240 Hz)

Output Port

1 × Audio out

Power & Environmental Conditions

Power Supply

12 VDC, 4 A

Power Type

power adapter

Power Consumption

18 W (basic), 29 W (typ.), 32 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–85% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

-5° / 15°

Left and Right Rotation Angle

-30° / +30°

Vertical Rotation Angle

-90° / +90°

Height Adjustment

110 mm (4.33")

Product Dimensions

557.7 mm × 327.3 mm × 67.9 mm (21.96" × 12.89" × 2.67") (W × H × D), without wall-mount bracket

Package Size

644mm×471mm×170mm
(25.35" × 18.54" × 6.69") (W × H × D)

Frame Width

U/L/R/D: 2.4 mm/2.4 mm/2.4 mm/16.4 mm

Net Weight

4.65 kg (10.25 lb)

Gross Weight

6.20 kg (13.67 lb)

Casing Color

Black

Control Mode

Joystick

Status Indicator Light

Yes

Wall Mount VESA

100 mm × 100 mm (3.94"×3.94")

Accessory

Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatoryinformation, etc.

Optional Accessory

Wall mount
