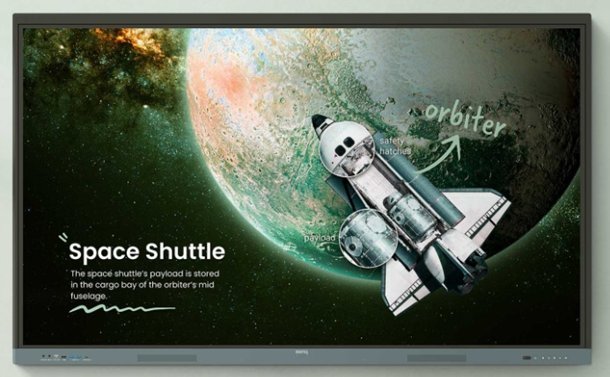

BenQ LCD RM6505 65" IPS Touch/­3840×2160/­1500:1/­8ms/­450 nits/­HDMI/­VGA/­USB/­SPDIF/­RS-232/­RJ-45/­Repro

BenQ LCD RM6505 65" Touch 8/128GB Android 15



Panel
Screen size 65''
Light source Direct LED
Panel type IPS
Orientation Landscape
Operation hours 18 hours / 7 days
Active area 1428.5 × 803.5 mm
Aspect ratio 16:9
Contrast ratio (typical) 1500:1
Dynamic contrast ratio 50,000:1
Resolution UHD 3840 × 2160 pixels
Response time 8 ms
Pixel pitch 0.37 × 0.37 mm
Frame rate 60 Hz
Viewing angle 178°
Panel Surface AG, Haze 25%
Color gamut 72% NTSC
Color depth 10-bit
Light life (typical) 50,000 hrs
Brightness without glass (typical) 450 nits


Glass
Thickness 3.2 mm
Germ-resistant technology Nano-ionic silver
Anti-glare coating Yes
Hardness 9H tempered
Glass Surface Haze 3% ~ 8%


Touch screen
Touch technology High Precision IR
Touch points up to 50
Touch resolution 32767 × 32767
Touch response time < 5 ms
Accuracy ±1.0 mm (middle 90% touch area)
OS Supported Windows XP/7/8/10/11 | Linux | Mac OS X | Android | Chrome
Touch pen requirement ? 2 mm
OS for Touch Driver Free Windows XP/7/8/10/11 | Linux | Mac | Android | Chorme OS


Platform System
SoC MTK/G720
CPU Arm Cortex-A78 × 2 + A55 × 6
GPU Arm Mali-G57 MC2
NPU 10 TOPS
OS Android 15.0
Memory | Storage 8GB | 128 GB


Connectivity
VGA (in | out) 1 | 0
HDMI (in | out) 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort (in | out) N/A
Audio (L/R, RCA) (in | out) 1 × 1.2a
Micro SD reader 1
Slot-in PC (OPS) 1
SPDIF (in | out) 1 (optical)
Power (AC) (in | out | switch) 1 | No | 1
Ethernet LAN 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
RS-232 ( in | out) 1 | 0
3.5 mm Line in (1) Mic × 1
3.5 mm Line in (2) PC Audio × 1
3.5 mm Line out Earphone × 1
USB-A 3 × 2.0 + 4 × 3.0
USB-A (spec name) 3 × USB 2.0 + 4 × USB 3.2 Gen 1 × 1
USB-B (for touch) 3 × 3.0
USB-B (spec name) 3 × USB 3.2 Gen 1 × 1
USB-C 1 × 2.0 + 1 × 3.0 (PD 65 W)
USB-C (spec name) 1 × USB 2.0 + 1 × USB 3.2 Gen 1 × 1 (PD 65W)
USB-C out 1 x Type-C (2.0 data / video out / audio out / touch)


Built-in peripherals
Microphone 8-microphone array (range: up to 12 m | 39ft)
Speaker 2 x 25 W
Wi-Fi Wi-Fi 6
Bluetooth Bluetooth 5.2
NFC Yes


Power
Switch 1
Voltage AC 100-240V 50/60Hz
Wake up LAN/HDMI/VGA/DP
Maximum power consumption 317.8 W
Standby power consumption <0.5 W
Typical power consumption 83.4 W


Physical
Dimensions (W x H x D) 1488.4 × 903.3 × 98.4 mm (58.6 × 35.6 × 3.9 inch)
Bezel width (T I B I L I R) 14.6 | 49.8 | 14.6 | 14.6 mm (0.6 | 2.0 | 0.6 | 0.6 inch)
Weight (product I shipping) 30.2 kg | 39.3 kg (66.6 lbs | 86.6 lbs)
Mount (screws) VESA 600 × 400 mm ( 4 × M8 × 25L)
VESA Hole (for Media Player) 1 (75 × 75)
Back Cover Metal
Back Cover Color Black (no logo)
Handles 2
Pen Tray N/A
Shipping dimensions (W x H x D) 1628 × 1014 × 185 mm (64.1 × 39.9 × 7.3 inch)


Environment
Storage temperature -20°C ~ 60°C | -4°F ~ 140°F
Operating temperature 0°C ~ 40°C | 32°F ~ 104°F
Storage humidity 10% ~ 90% RH non-condensing
Operating humidity 10% ~ 90% RH non-condensing


Software
Flicker free Yes
Low Blue Light Yes
Device management DMS
Quick access tool Floating Tool
WPS (office viewer APP) Yes
Content management N/A
Color Calibration SW N/A
Wireless screen sharing InstaShare 2
Broadcast system X-Sign Broadcast
Account management AMS
User interface (4K) Yes
Whiteboarding EZWrite 6.0


Accessories:
Stylus 2
Wall mount 1
Quick Start Guide in box 1
User’s Manual (electronic file) 1
Remote control 1
Carton BenQ printing
Cables 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
