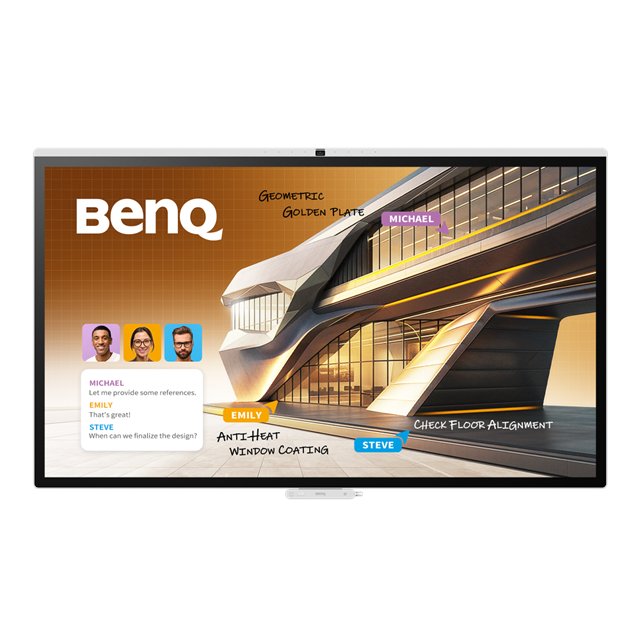

BenQ LCD CP5505 55" ADS Touch/­3840×2160/­1200:1/­8ms/­450 nits/­HDMI/­USB/­RS-232/­RJ-45/­Repro

BenQ LCD CP5505 55" Touch 16/256GB Android 15



Panel
Screen size 55''
Pixel Defect(Bright Dot/Dark Dot/Total Dot(Refer Panel IIS for details) 0/12/12
Light source Direct LED
Panel type ADS
Orientation Landscape and Portrait
Operation hours 18 hours / 7 days
Active area 1209.6 × 680.4mm
Aspect ratio 16:9
Contrast ratio (typical) 1200:1
Dynamic contrast ratio 50,000:1
Resolution UHD 3840 × 2160 pixels
Response time 8 ms
Pixel pitch 0.32 × 0.32 mm
Frame rate 60 Hz
Viewing angle 178°
Panel Surface AG, Haze 25%
Color gamut "90% NTSC,
95% DCI-P3"
Color depth 10-bit
Light life (typical) 50,000 hrs
Brightness with glass(typical) 400 nits
Brightness without glass (typical) 450 nits

Glass
Thickness 3.0 mm
Germ-resistant technology Nano-ionic silver
Anti-glare coating Yes
Hardness 9H tempered
Glass Surface Haze 3-8%


Touch screen
Touch technology Capacitive touch
Touch points up to 50
Touch resolution 32767 × 32767
Touch response time < 5 ms
Accuracy "?2.0mm (Center)
?2.5mm (Edge)"
OS Supported Windows XP/7/8/10/11 | Linux | Mac OS X | Android | Chrome
Touch pen requirement Active pen: 3mm(????), Passive pen: 8mm (????)
OS for Touch Driver Free Windows XP/7/8/10/11 | Linux | Mac OS X | Android | Chrome


Platform System
SoC MTK/G720
CPU A78 * 2 + A55 * 6
GPU Arm Mali-G57 MC2
NPU 10 TOPS
OS Android 15.0
Memory | Storage 16GB | 256GB


Connectivity
HDMI (in | out) 1 × HDMI 2.0 | 0 × HDMI 2.0
Slot-in PC (OPS) 1
Power (AC) (in | out | switch) 1 | No | 1
Ethernet LAN 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
RS-232 ( in | out) 1 | 0
3.5 mm Line out Earphone × 1
USB-A 2 × 3.0
USB-A (spec name) 2 x USB 3.2 Gen 1 x 1
USB-C 1 × 3.0 + 1 × 2.0 (PD 65 W)
USB-C (spec name) 1 x USB 2.0 + 1 × USB 3.2 Gen 1 × 1 (PD 65 W)
USB-C out 1 x Type-C (3.0 data / video out / audio out / touch)


Built-in peripherals
Camera Yes, FOV 160
Microphone 8-microphone array (range: up to 12 m | 39ft)
Speaker 2 x 15 W
Wi-Fi Wi-Fi 6
NFC Yes


Power
Power AC 100-240V 50/60Hz
Switch 1
Voltage AC 100-240V 50/60Hz
Wake up LAN/HDMI
Maximum power consumption 410 W
Standby power consumption <0.5 W
Typical power consumption 62W

Physical
Dimensions (W x H x D) 1272.8 x 799.6 x 85.7mm (50.11 × 31.48 × 3.37 inch)
Bezel width (T I B I L I R) 26.2 | 3.4 | 3.4 | 3.4 mm (1 | 0.1 | 0.1 | 0.8 inch)
Weight (product | shipping) 32.3 kg | 40.5 kg (71.2 lbs | 89.3 lbs)
Mount (screws) VESA 400 × 400 mm ( 4 × M6 × 20L)
Back Cover Plastic
Back Cover Color White
Pen Tray 1 (Pen Holder)
Shipping dimensions (W x H x D) 1380 × 880 x 200 mm (54.33 × 34.65 x 7.87 inch)


Environment
Storage temperature -10°C ~ 60°C | 14°F ~ 140°F
Operating temperature 0°C ~ 40°C | 32°F ~ 104°F
Storage humidity 20% ~ 90% RH non-condensing
Operating humidity 20% ~ 80% RH non-condensing

Software
Flicker free Yes
Low Blue Light Yes (SW)
Device management DMS
Quick access tool Floating Tool
WPS (office viewer APP) Yes
Wireless screen sharing InstaShare 2
Broadcast system X-Sign Broadcast
Account management AMS
User interface (4K) Yes
Whiteboarding EZWrite 6.0

Accessories:
Stylus 2 (1 x active, 1 x passive)
Wall mount 1
RS232 Cable 1
Quick Start Guide in box 1
User’s Manual (electronic file) 1
Remote control N/A
Carton BenQ printing
Cables 1 × HDMI (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft), 1 × USB-C to A (3 m | 9.8 ft), 1 x RS232 (1.8 m | 5.9 ft)
OSD (28L) EN/EF/GM/DT/PL/RS/CZ/DN/SW/IT/RM/FN/NG/GK/HG/SP/EP/TC/CN/AB/JP/TH/PS/VT/KR/TR/ID/HE
Power cord WW: × 6 (EU/UK/US/AU/TW/IN), BQIN x1
