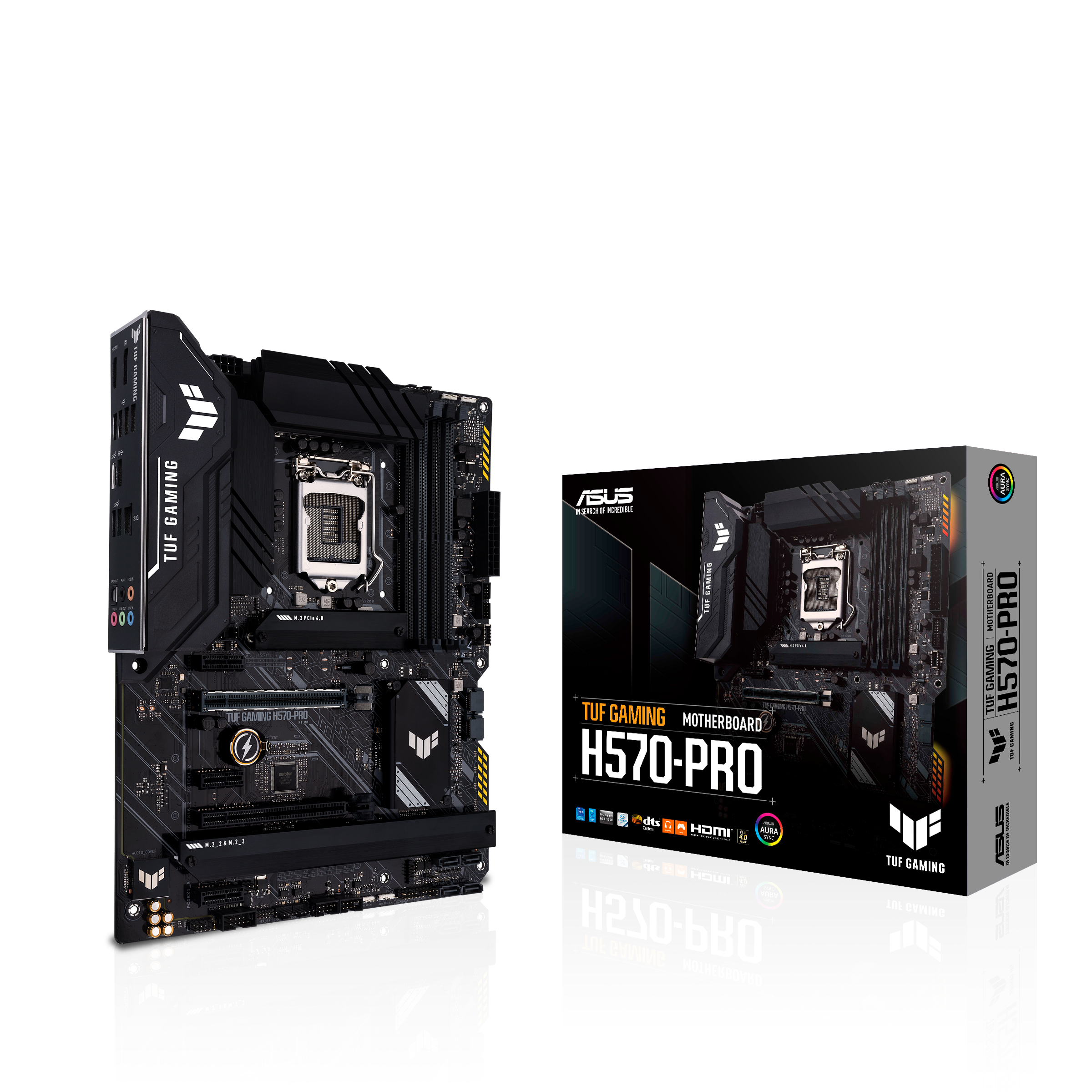

Chipset: Intel® H570 Chipset
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru: LGA 1200
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
Dual Channel Memory Architecture
Intel® Extreme Memory Profile (XMP)
OptiMem II
Grafická karta:
Integrated Graphics Processor (na základě procesoru)
Zvuková karta:
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Síťová karta:
1x Realtek 2.5Gb Ethernet
Rozšiřující sloty:
1x PCIe 4.0/3.0 x16
1x PCIe 3.0 x16 (max. x4)
3x PCIe 3.0 x1 slots
SATA:
6x SATA 6Gb/s ports
M.2:
M.2_1 slot (Key M), type 2242/2260/2280
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
USB:
zadní USB porty ( celkem 8 )
1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 1 port (1 x Type-A)
4x USB 2.0 ports (4 x Type-A)
přední USB porty ( celkem 7 )
1x USB 3.2 Gen 1 connector (suppports USB Type-C®)
2x USB 3.2 Gen 1 ports
4x USB 2.0 ports
Interní porty:
1x Thunderbolt 4 header
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
3x M.2 slots (Key M)
6x SATA 6Gb/s ports
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
2x AURA Addressable Gen 2 headers
2x AURA RGB headers
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x 20-3 pin System Panel header with Chassis intrude functionpasting
1x Thunderbolt™ header
Externí porty:
1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 1 port (1 x Type-A)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI™ port
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x Optical S/PDIF out port
Obsah balení:
2x SATA 6Gb/s cables
2x M.2 Rubber Packages
2x M.2 SSD screw packages
1x TUF Gaming sticker
1x Support DVD
1x TUF Certification card
1x User manual
BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
