The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

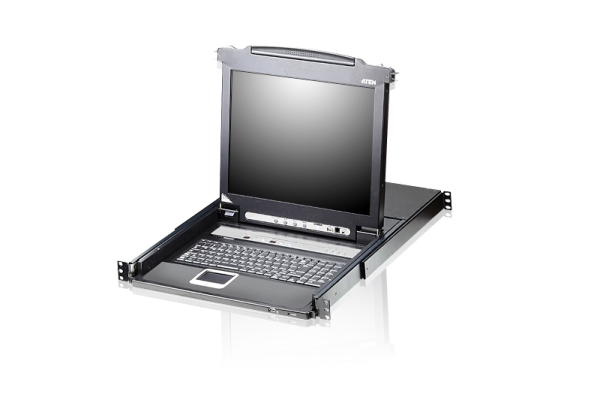

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
CL5708N: 19" LCD
Features:

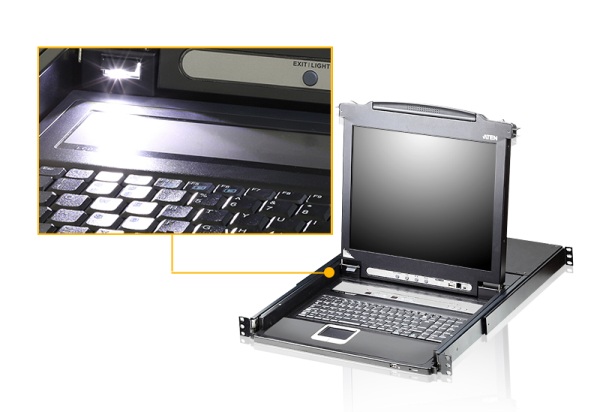

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 19" LED-backlit LCD monitor in a Slideaway™ housing
Available with or without Fingerprint Identification Reader**
Space saving technology - up to two consoles (one bus) control up to 8 computers
Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows each computer to access USB peripherals*
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Multiplatform support – Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports external USB mouse
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Beeper on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
Package Contents
1x CL5708 LCD KVM Switch with standard Rack Mount Kit
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord (AC Power Models)
1x User Instructions
